Stabilser Assembly
| Part Name | Stabilser Assembly |
|---|---|
| Manufacturer | Vapormatic |
| Part No | VPL3248 |
Vapormatic replacement stabiliser assembly to fit the following John Deere models:5055E - 5075E - 5078E...
Top Link - CAT 2/2
| Part Name | Top Link - CAT 2/2 |
|---|---|
| Manufacturer | Vapormatic |
| Part No | VPL5025 |
Vapormatic replacement top link to fit the following John Deere models:Tractors5076E - 5082E - 5090E...
Top Link - CAT 2/2
| Part Name | Top Link - CAT 2/2 |
|---|---|
| Manufacturer | Vapormatic |
| Part No | VPL5026 |
Vapormatic replacement top link to fit the following John Deere models:Tractors6010 - 6010SE - 6020 - 6020SE...
Top Link - CAT 3/3
| Part Name | Top Link - CAT 3/3 |
|---|---|
| Manufacturer | Vapormatic |
| Part No | JXAL215045 |
John Deere Alternatives top link to fit the following John Deere models:Tractors6020 - 6090...
Top Link - CAT 3/3
| Part Name | Top Link - CAT 3/3 |
|---|---|
| Manufacturer | Vapormatic |
| Part No | VPL5028 |
Vapormatic replacement top link to fit the following John Deere models:Tractors6020 - 6090MC - 6090RC...
Linch Pin - 6mm
| Part Name | Linch Pin - 6mm |
|---|---|
| Manufacturer | Vapormatic |
| Part No | VLK6210/1 |
Linch PinPin diameter - 1/4inch (6mm) Pin length - 42mm
Linch Pin - 8mm
| Part Name | Linch Pin - 8mm |
|---|---|
| Manufacturer | Vapormatic |
| Part No | VLK6301/1 |
Linch PinPin diameter - 5/16inch (8mm) Pin length - 42mm
Linch Pin - 11mm
| Part Name | Linch Pin - 11mm |
|---|---|
| Manufacturer | Vapormatic |
| Part No | VLK6308/1 |
Linch PinPin diameter - 7/16inch (11mm) Pin length - 42mm

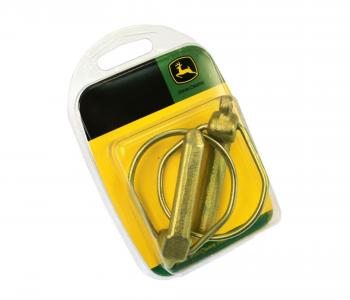

Linch Pin - 11mm
| Part Name | Linch Pin - 11mm |
|---|---|
| Manufacturer | John Deere |
| Part No | MCXFA1459 |
John Deere linch pin 2 pack11mm Ø x 53mm
Linch Pin - 15mm
| Part Name | Linch Pin - 15mm |
|---|---|
| Manufacturer | John Deere |
| Part No | MCXFA1460 |
John Deere linch pin 2 pack15mm Ø x 60mm
Shaft Locking Pin - 6mm
| Part Name | Shaft Locking Pin - 6mm |
|---|---|
| Manufacturer | John Deere |
| Part No | MCXFA1393 |
John Deere shaft locking pin 2 pack 6mm Ø x 50mm
Shaft Locking Pin - 9.5mm
| Part Name | Shaft Locking Pin - 9.5mm |
|---|---|
| Manufacturer | John Deere |
| Part No | MCXFA1395 |
John Deere shaft locking pin 2 pack 9.5mm Ø x 57mm
Shaft Locking Pin - 11mm
| Part Name | Shaft Locking Pin - 11mm |
|---|---|
| Manufacturer | John Deere |
| Part No | MCXFA1392 |
John Deere shaft locking pin 2 pack 11mm Ø x 89mm
R-clip 2.5mm
| Part Name | R-clip 2.5mm |
|---|---|
| Manufacturer | John Deere |
| Part No | MCXFA1093 |
John Deere R-clip 10 pack2.5mm x 45mm
R-clip 3mm
| Part Name | R-clip 3mm |
|---|---|
| Manufacturer | John Deere |
| Part No | MCXFA1094 |
John Deere R-clip 10 pack3mm x 54mm
R-clip 5mm
| Part Name | R-clip 5mm |
|---|---|
| Manufacturer | John Deere |
| Part No | MCXFA1097 |
John Deere R-clip 10 pack5mm x 107mm
R-clip 6mm
| Part Name | R-clip 6mm |
|---|---|
| Manufacturer | John Deere |
| Part No | MCXFA1396 |
John Deere R-clip 5 pack6mm x 115mm
R-clip Assortment
| Part Name | R-clip Assortment |
|---|---|
| Manufacturer | John Deere |
| Part No | MCXFA1092 |
John Deere R-clip assortment 150 pieces Contains the following sizes and qty's Ø 3/32" x 1 3/32" (42)...
Quick Hitch Lower Link Ball - CAT 2/2
| Part Name | Quick Hitch Lower Link Ball - CAT 2/2 |
|---|---|
| Manufacturer | Vapormatic |
| Part No | VLE6119 |
Category 2 Hole Ø - 28.7mm Outer Ø - 56mm

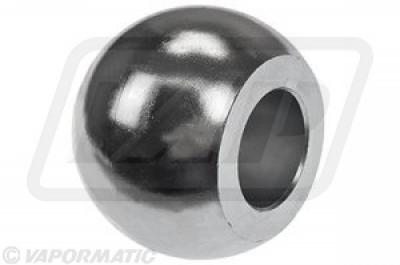

Lower Link Ball - CAT 2/2
| Part Name | Lower Link Ball - CAT 2/2 |
|---|---|
| Manufacturer | Vapormatic |
| Part No | VLE6143 |
Category 2 Hole Ø - 28.7mm Outer Ø - 56mm
Lower Link Ball - CAT 3/2
| Part Name | Lower Link Ball - CAT 3/2 |
|---|---|
| Manufacturer | Vapormatic |
| Part No | VLE6144 |
Category 3 / 2 Hole Ø - 28.7mm Outer Ø - 64mm
Lower Link Ball - CAT 3/3
| Part Name | Lower Link Ball - CAT 3/3 |
|---|---|
| Manufacturer | Vapormatic |
| Part No | VLE6145 |
Category 3/3 Hole Ø - 37.4mm Outer Ø - 64mm
Quick Hitch Lower Link Ball - CAT 3/3
| Part Name | Quick Hitch Lower Link Ball - CAT 3/3 |
|---|---|
| Manufacturer | Vapormatic |
| Part No | VLE6121 |
Category 3/3 Hole Ø - 37.4mm Outer Ø - 64mm

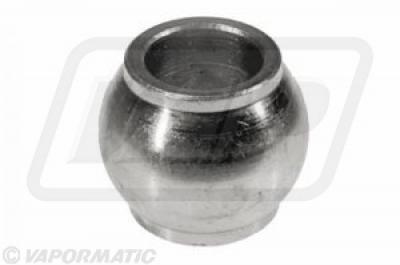

Top Link Ball - CAT 2/2
| Part Name | Top Link Ball - CAT 2/2 |
|---|---|
| Manufacturer | Vapormatic |
| Part No | VLE6146 |
Top Link BallCategory 2 Hole Ø - 25.7mm Outer Ø - 50mm
Top Link Ball - CAT 3/2
| Part Name | Top Link Ball - CAT 3/2 |
|---|---|
| Manufacturer | Vapormatic |
| Part No | VLE6147 |
Top Link BallCategory 3/2 Hole Ø - 25.7mm Outer Ø - 60mm
Top Link Ball - CAT 3/3
| Part Name | Top Link Ball - CAT 3/3 |
|---|---|
| Manufacturer | Vapormatic |
| Part No | VLE6148 |
Top Link BallCategory 3/3 Hole Ø - 32mm Outer Ø - 60mm
Top Link Pin - CAT 1
| Part Name | Top Link Pin - CAT 1 |
|---|---|
| Manufacturer | Vapormatic |
| Part No | VLK7002 |
Category 1 Top Link Pin A - 19mm B - 70mm C - 12mm D - 21.8mm
Top Link Pin - CAT 1
| Part Name | Top Link Pin - CAT 1 |
|---|---|
| Manufacturer | Vapormatic |
| Part No | VLK7003 |
Category 1 Top Link PinA - 19mm B - 96mm C - 12mm D - 22.4mm
Lower Link Pin - CAT 1
| Part Name | Lower Link Pin - CAT 1 |
|---|---|
| Manufacturer | Vapormatic |
| Part No | VLK7014 |
Category 1 Lower Link Pin A - 22mm B - 88mm C - 12mm D - 25.5mm
Lower Link Pin - CAT 1
| Part Name | Lower Link Pin - CAT 1 |
|---|---|
| Manufacturer | Vapormatic |
| Part No | VLK7051 |
Category 1 Lower Link Pin Can also be used as the top link pin for the following John Deere tractor...
Lower Link Pin - CAT 2
| Part Name | Lower Link Pin - CAT 2 |
|---|---|
| Manufacturer | Vapormatic |
| Part No | VLK7058 |
Category 2 Lower Link Pin A - 28.2mm B - 90mm C - 12mm D - 32.2mm
Lower Link Pin - CAT 3
| Part Name | Lower Link Pin - CAT 3 |
|---|---|
| Manufacturer | Vapormatic |
| Part No | VPL2712 |
Category 3 Lower Link Pin A - 37mm B - 169mm C - 113mm D - 12mm
Lower Link Pin - CAT 3
| Part Name | Lower Link Pin - CAT 3 |
|---|---|
| Manufacturer | Vapormatic |
| Part No | VPL2713 |
Category 3 Lower Link Pin A - 37mm B - 121mm C - 110mm D - 12mm
Lower Link Pin - CAT 3
| Part Name | Lower Link Pin - CAT 3 |
|---|---|
| Manufacturer | Vapormatic |
| Part No | VPL2714 |
Category 3 Lower Link Pin A - 37mm B - 119mm C - 12mm D - 46mm
Top Link Pin - CAT 2
| Part Name | Top Link Pin - CAT 2 |
|---|---|
| Manufacturer | Vapormatic |
| Part No | VLK7005 |
Category 2 Top Link Pin A - 25.4mm B - 103mm C - 12mm D - 28.8mm
Top Link Pin - CAT 2
| Part Name | Top Link Pin - CAT 2 |
|---|---|
| Manufacturer | Vapormatic |
| Part No | VLK7006 |
Category 2 Top Link Pin A - 25.4mm B - 76mm C - 12mm D - 28.8mm
Top Link Pin - CAT 2
| Part Name | Top Link Pin - CAT 2 |
|---|---|
| Manufacturer | Vapormatic |
| Part No | VLK7007 |
Category 2 Top Link Pin A - 25.4mm B - 92mm C - 12mm D - 31.5mm
Top Link Pin - CAT 2
| Part Name | Top Link Pin - CAT 2 |
|---|---|
| Manufacturer | Vapormatic |
| Part No | VLK7015 |
Category 2 Top Link PinA - 25.4mm B - 95mm C - 12mm D - 28.8mm
Top Link Pin - CAT 2
| Part Name | Top Link Pin - CAT 2 |
|---|---|
| Manufacturer | Vapormatic |
| Part No | VLK7053 |
Category 2 Top Link PinA - 25.4mm B - 105mm C - 12mm D - 28.8mm
Top Link Pin - CAT 2
| Part Name | Top Link Pin - CAT 2 |
|---|---|
| Manufacturer | Vapormatic |
| Part No | VLK7057 |
Category 2 Top Link PinA - 25.4mm B - 68mm C - 12mm D - 28.8mm
Top Link Pin - CAT 2
| Part Name | Top Link Pin - CAT 2 |
|---|---|
| Manufacturer | Vapormatic |
| Part No | VLK7038 |
Category 2 Top Link Pin A - 25.4mm B - 117mm C - 135mm D - 12mm
Top Link Pin - CAT 2
| Part Name | Top Link Pin - CAT 2 |
|---|---|
| Manufacturer | Vapormatic |
| Part No | VLK7059 |
Category 2 Top Link Pin A - 25.4mm B - 99mm C - 12mm D - 28.8mm
Top Link Pin - CAT 3
| Part Name | Top Link Pin - CAT 3 |
|---|---|
| Manufacturer | Vapormatic |
| Part No | VLK7020 |
Category 3 Top Link Pin A - 31.9mm B - 170mm C - 112mm D - 12mm
Top Link Pin - CAT 3
| Part Name | Top Link Pin - CAT 3 |
|---|---|
| Manufacturer | Vapormatic |
| Part No | VLK7021 |
Category 3 Top Link Pin A - 31.9mm B - 120mm C - 12mm D - 38.4mm
50mm Ball Hitch Pin
| Part Name | 50mm Ball Hitch Pin |
|---|---|
| Manufacturer | Vapormatic |
| Part No | VLE2118 |
Hitch pin with 50mm Ø ballPin Ø 1 1/4" (32mm)
Drawbar Pin
| Part Name | Drawbar Pin |
|---|---|
| Manufacturer | Vapormatic |
| Part No | VLE2011 |
Towing PinA - 183mmB - 28mm
Drawbar Pin
| Part Name | Drawbar Pin |
|---|---|
| Manufacturer | Vapormatic |
| Part No | VLE2016 |
Towing PinA - 158mmB - 22mm
Drawbar Pin
| Part Name | Drawbar Pin |
|---|---|
| Manufacturer | Vapormatic |
| Part No | VLE2032 |
Towing PinA - 185mmB - 35mm
Drawbar Pin
| Part Name | Drawbar Pin |
|---|---|
| Manufacturer | Vapormatic |
| Part No | VLE2033 |
Towing PinA - 185mmB - 38mm
